Webcasata Filter Gallery

Webcasata Filter Gallery lets you build stunning, responsive image galleries where visitors can instantly filter images using custom dropdown menus — all without any page reload.

Key Features

• Multi-group dropdown filtering — Create filter groups (e.g. “Country”, “Room Type”). Each becomes a styled dropdown on the front end.
• AND logic across groups, OR within a group — Country=India AND Room=Kitchen; image can belong to multiple countries.
• Custom styled dropdowns — Single-select, closes on pick, with active pill indicators.
• Real-time title search — Search box with 220ms debounce filters images as you type.
• Equal Grid & Masonry layouts — Choose your preferred display style.
• Configurable columns — 1 to 6 columns with automatic responsive breakpoints.
• Slide / Fade / None animations — Smooth transitions when switching filters.
• Load More pagination — Shows a configurable number of images on load; load more on click. Set to -1 to show all.
• Built-in Lightbox — Full-screen image viewer with prev/next, keyboard support, and optional Visit Link button.
• Image URL link — Assign an external URL to any image, with optional new tab.
• Image Title & Caption — Display below each image. Title hideable via shortcode.
• Filter labels on image cards — Show assigned filter values as badge labels or ribbons.
• Template override system — WooCommerce-style. Copy templates to your theme to customise layout completely.
• Shortcode — [wbfg_gallery id="X"] with full inline attribute overrides.
• Gutenberg Block — Live preview block with full sidebar controls.
• Per-gallery custom CSS — Fine-tune each gallery independently.
• Global settings — Control defaults for all galleries from one Settings page.
• Accessibility — ARIA roles, keyboard-navigable dropdowns, focus management.
• Fully responsive — Mobile-first CSS with sensible breakpoints.

Template Override System

Copy templates to your active theme to customise the output:

your-theme/webcasata-filter-gallery/image-card.php
your-theme/webcasata-filter-gallery/gallery-template.php

All image variables are available in image-card.php: $image, $title, $caption, $link_url, $link_new_tab, $filters, $lightbox, $show_title, $index, $gallery_id.

Shortcode Parameters

[wbfg_gallery id="X" columns="3" show_all="yes" per_page="6" loadmore="6" layout="grid" lightbox="yes" animation="slide" title="show"]

Parameter
Values
Default

id
Gallery post ID
(required)

columns
1–6
3

show_all
yes / no
yes

per_page
number or -1
6

loadmore
number
6

layout
grid / masonry
grid

lightbox
yes / no
yes

animation
slide / fade / none
slide

title
show / hide
show

Credits

Developed by Vishal Singh at Webcasata.

1. Upload the webcasata-filter-gallery folder to /wp-content/plugins/.
2. Activate the plugin through Plugins › Installed Plugins.
3. Go to Filter Galleries › Add New to create your first gallery.
4. Add filter groups and values, upload images, assign filter values, and publish.
5. Copy the shortcode from the sidebar and paste it into any page or post.

1.

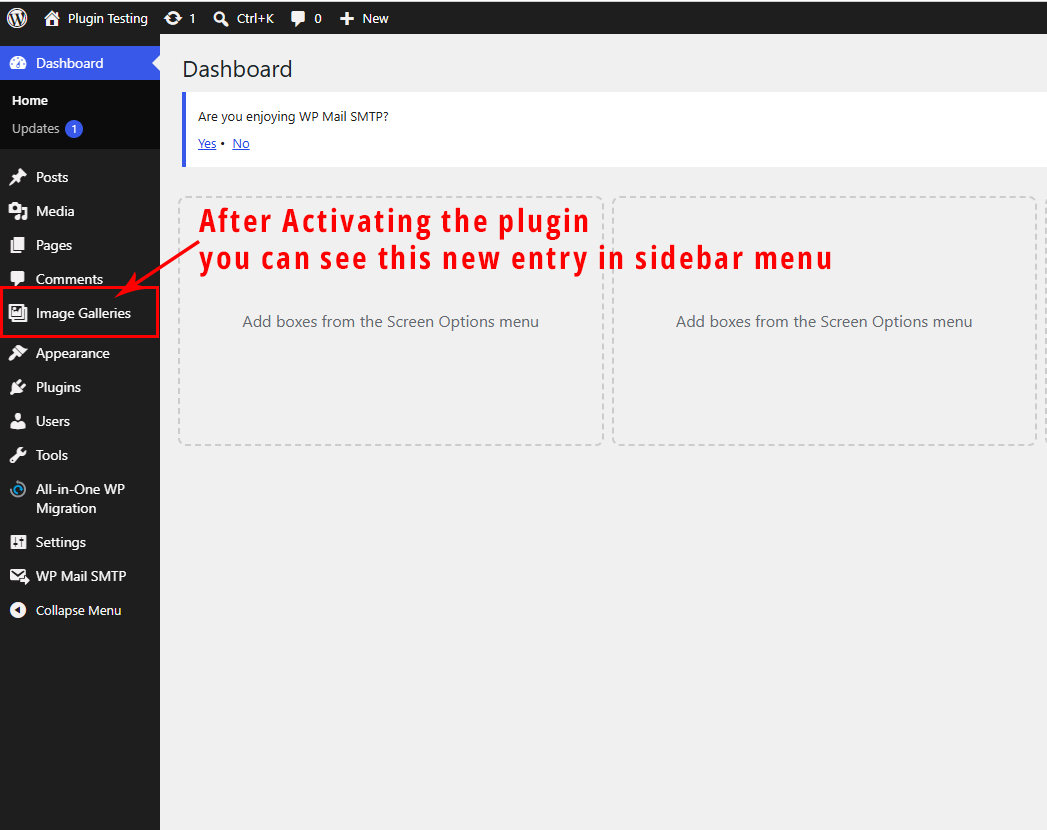

   After activation you can find in the sidebar menu

2.

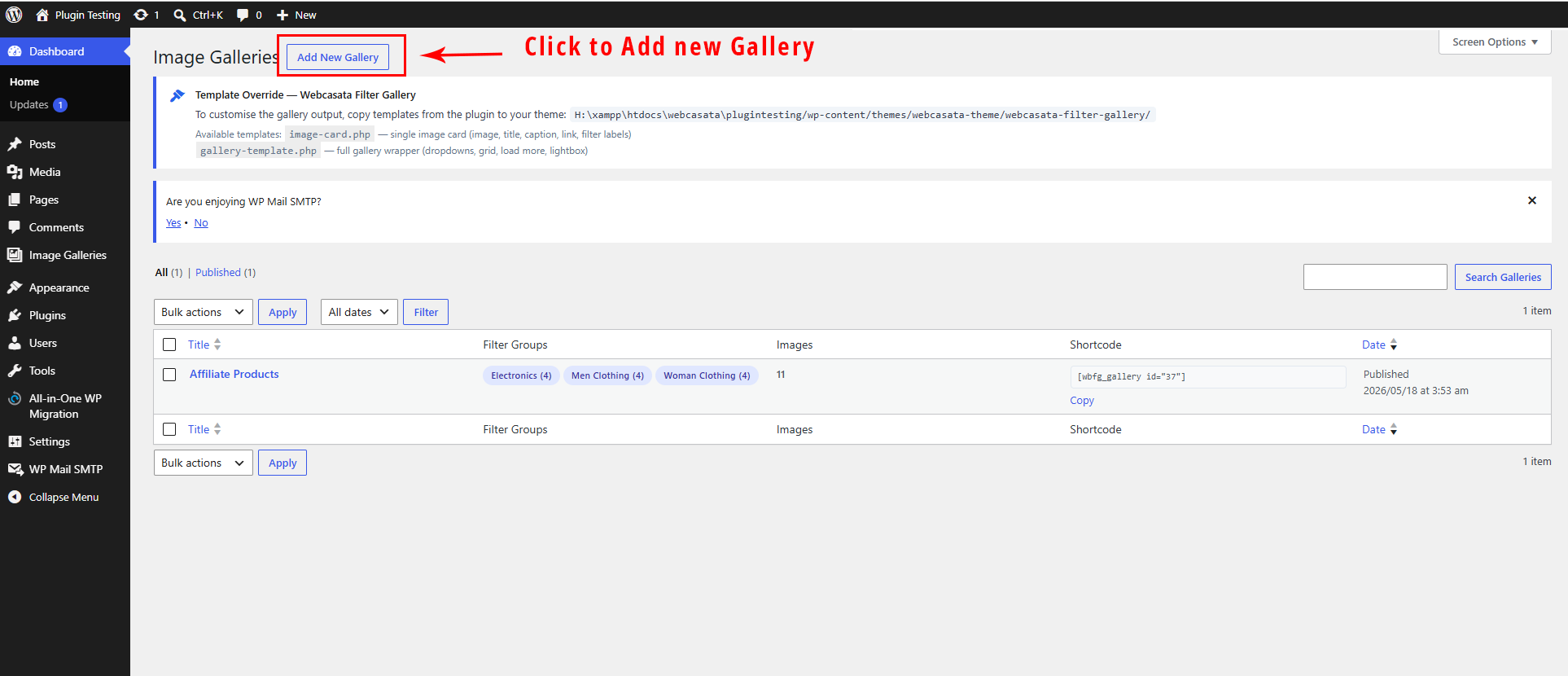

   Add New Gallery

3.

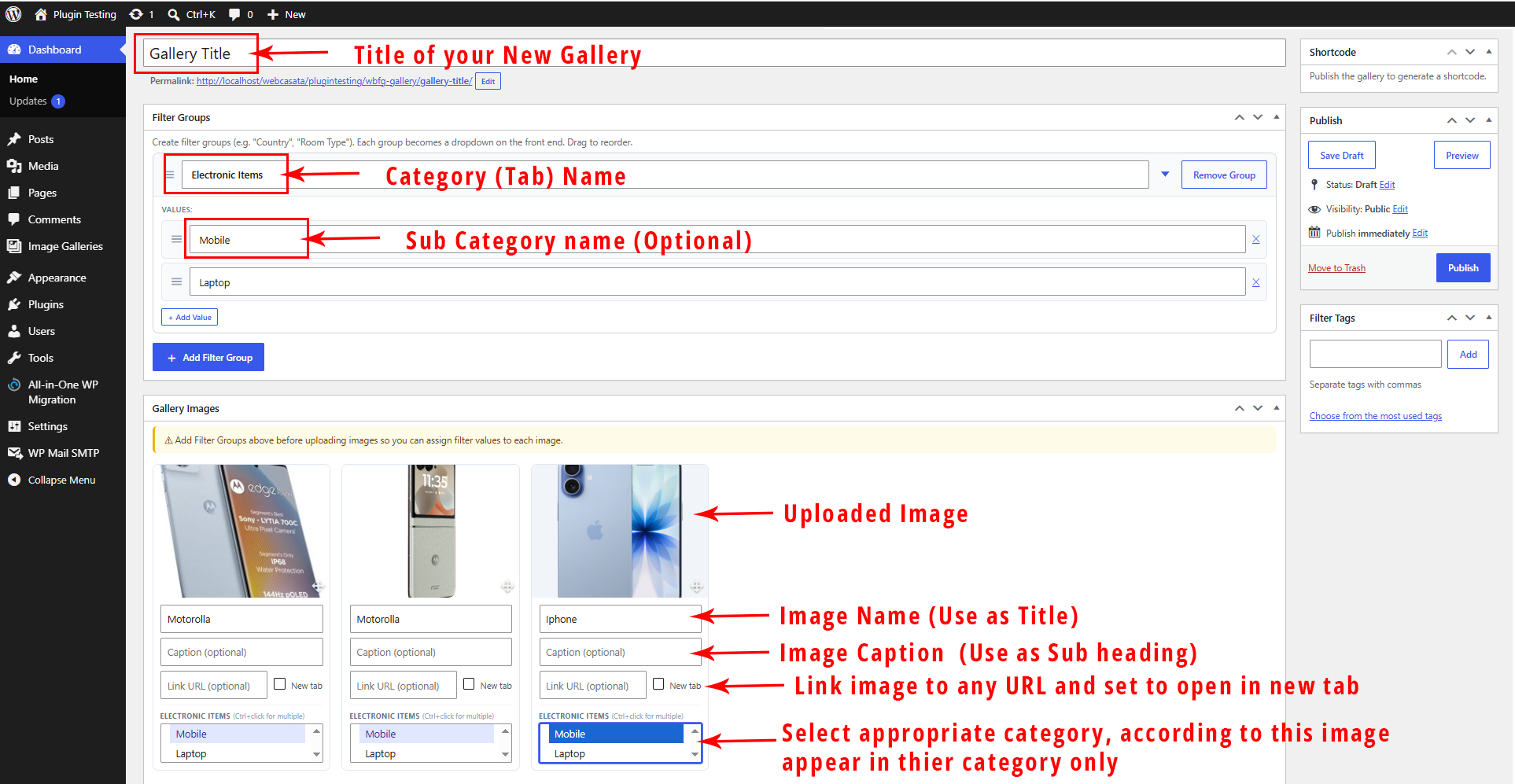

   Explained each fields

4.

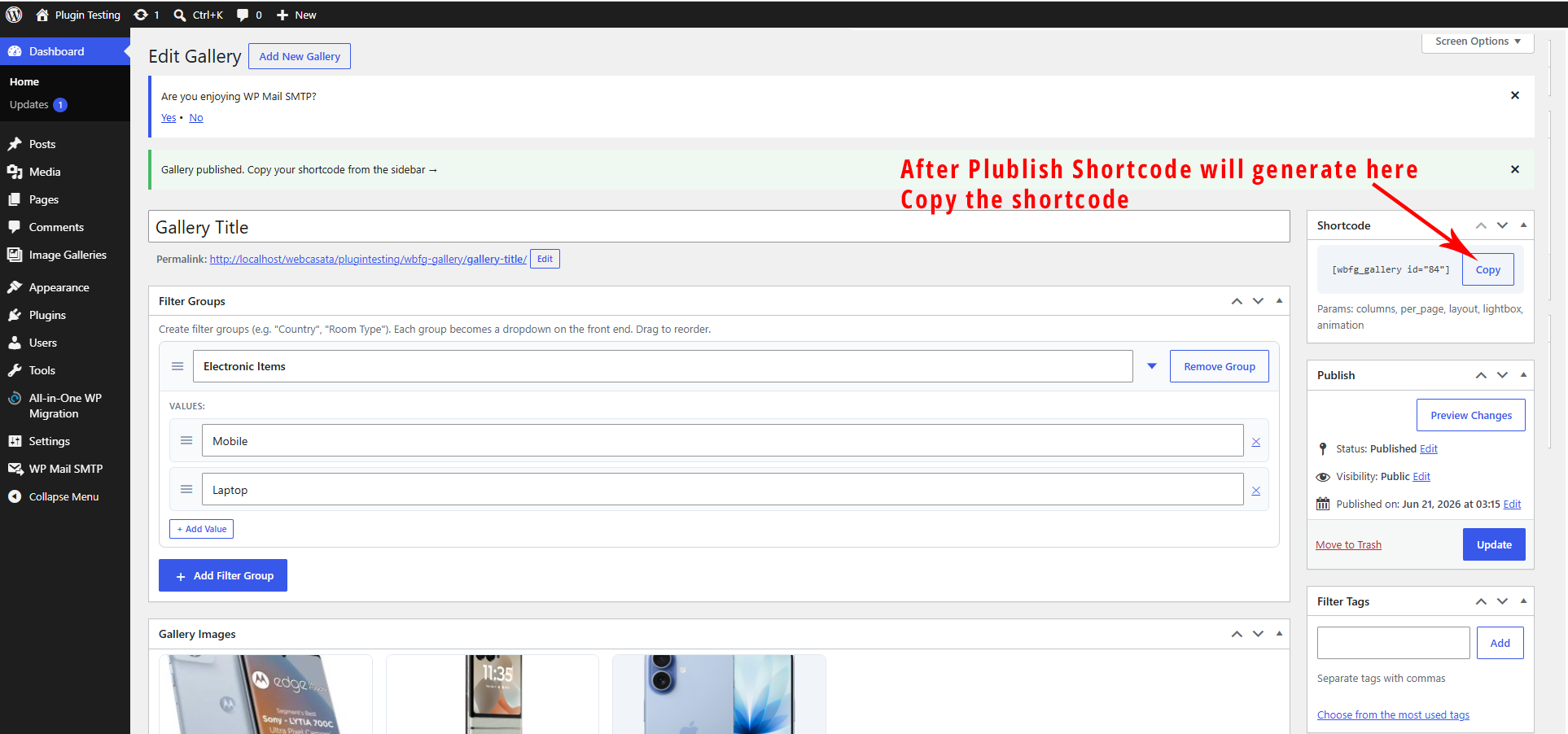

   Copy the Shortcode

5.

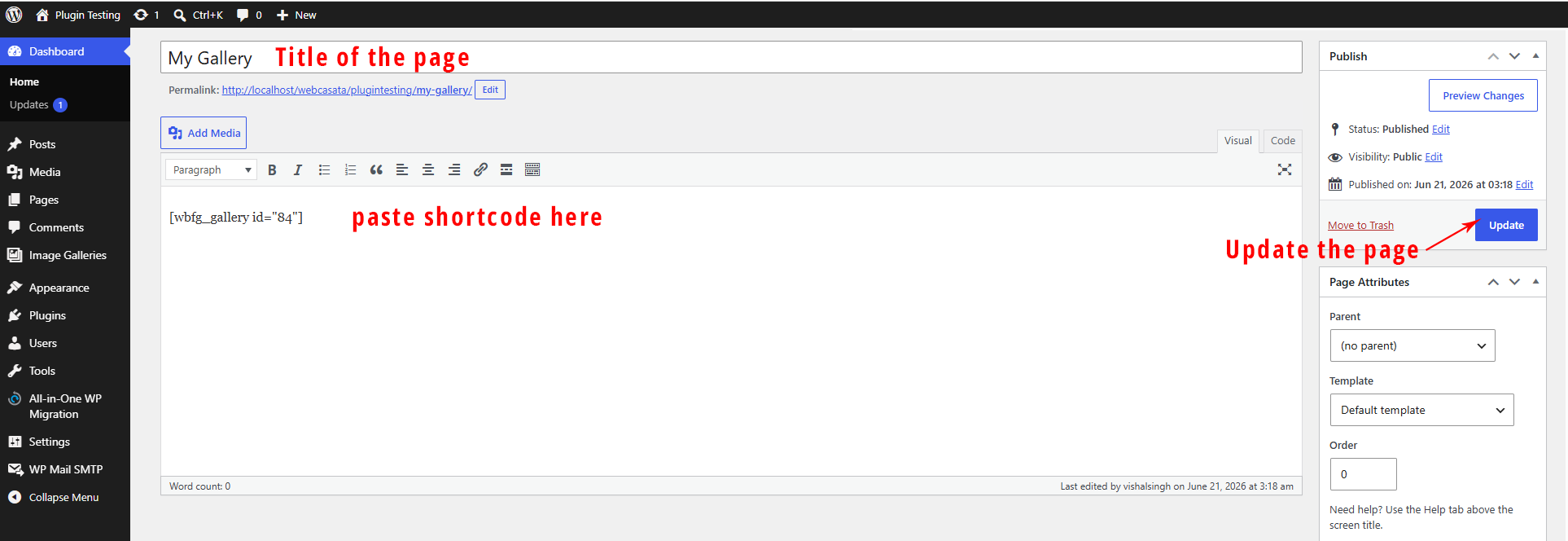

   Create new page/post and paste the shortcode.

6.

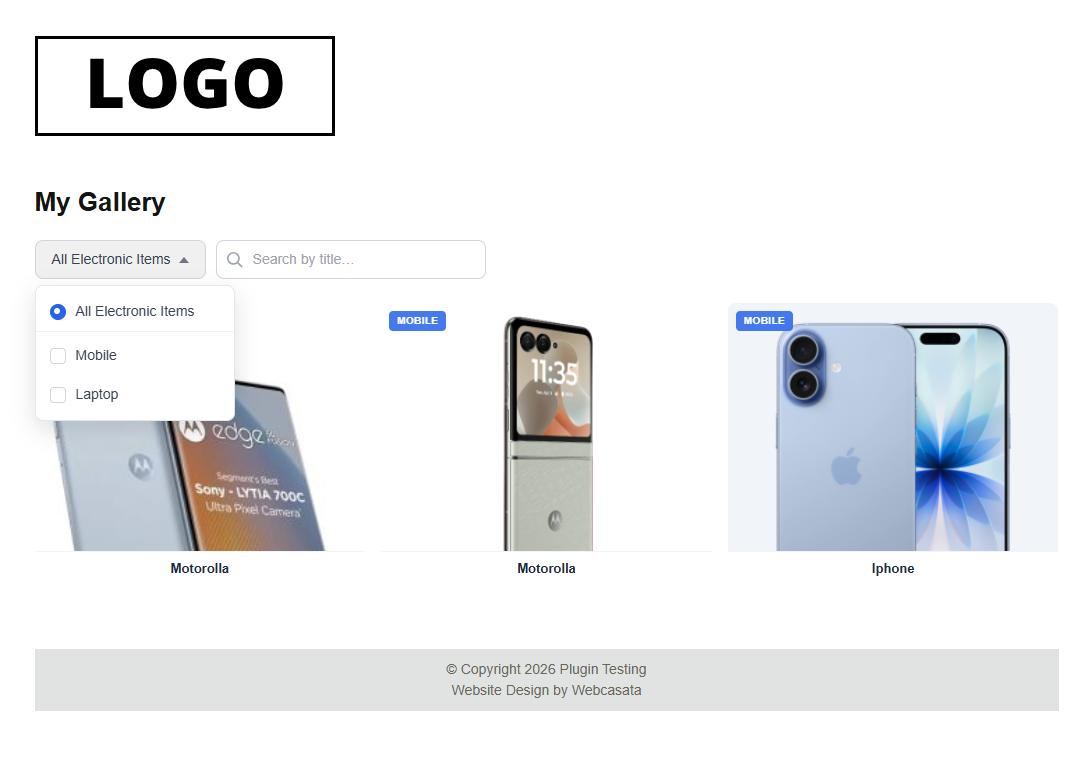

   Front end view

2.1.0

• New: WooCommerce-style template override system (image-card.php, gallery-template.php).
• New: Filter value labels displayed on each image card (badge and ribbon styles).
• New: FIG_Template class with locate(), load(), is_overridden() methods.
• New: Admin notice showing theme override path and active overrides.
• Improved: render_item() now delegates to template system; fallback inline renderer kept.
• Fix: Per-gallery custom CSS now uses wp_add_inline_style() instead of inline <style> tag.
• Fix: Settings page styles moved to wp_add_inline_style().

2.0.0

• New: Multi-group dropdown filtering with AND logic across groups, OR within a group.
• New: Custom styled single-select dropdowns replace flat filter tabs.
• New: Images support multiple filter values per group via multi-select admin UI.
• New: Image title displayed below each image (hideable via shortcode title=”hide”).
• New: Image URL link field with open-in-new-tab option.
• New: Visit Link button inside lightbox when image has a URL.
• New: Real-time title search box with debounce and clear button.
• New: Filter group collapse/expand in admin edit screen.
• New: Active filter pill tags shown above gallery with individual remove buttons.
• New: Initial count supports -1 to show all images (no Load More button).
• Improved: Filter assignment uses scrollable multi-select box (handles 50+ values).
• Improved: All filtering is client-side — instant, no AJAX round-trips.
• Improved: Backward compatible with v1 flat-tag galleries.

1.0.0

• Initial release.
